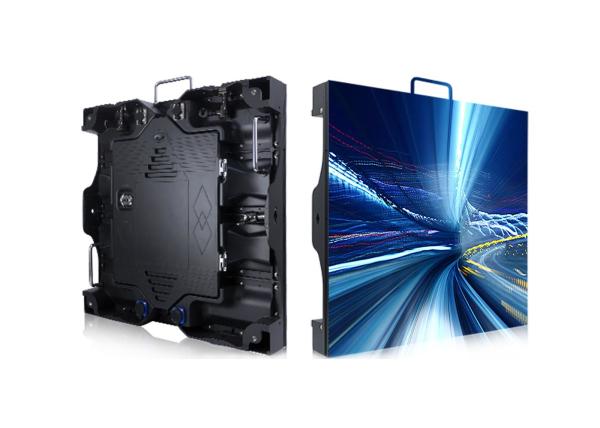

High brightness P2 outdoor fixed installation HD LED display
Function and Technology Character Introduction:
1, 160° ultra-wide viewing angle, you can watch everywhere
2, The display gray level is uniform at low brightness, and the display consistency is very good
3, High refresh chip high refresh chip, refresh up to 3840Hz, constant output current, high refresh effect and no flicker when taking pictures.
4, The flatness error of the whole screen is less than 0.2mm, which can effectively eliminate the mosaic phenomenon
5, Constant output current, no flicker when taking pictures with high refresh effect
Products Applications:
Widely used in churches, control command centers, video surveillance centers, high-definition information release, conference display systems and other commercial venues
SPECIFICATIONS Parameters:
| Product parameter |
| led module |
| Pixel pitch (mm) | P2 |
| Pixel density (point /㎡) | 250000 |
| Module size (mm) | 256X128 |
| Module resolution (WxH) | 128X64 |
| Package form | SMD1515 |
| scanning method | 1/32S |
| Refresh rate (Hz) | ≥1920/3840(Optional ) |
| White balance brightness (Nits) | ＞700 |
| Color temperature (K) | 3200-9300(Adjustable ) |
| Gray scale | ≥14bit |
| Frame change frequency | 60-120Hz |
| Viewing angle (horizontal/vertical) | 160°/160° |
| Protection level (front/back) | IP31 |
| Average/peak power consumption (W/㎡) | 850/350 |
| Face mask | Have |
| Cabinet |
| Cabinet size (mm) | 512X512 |
| Screen weight (Kg) | 8.5 |
| Cabinet module composition (WxH) | 2X4 |
| Cabinet resolution (WxH) | 256X256 |
| Flatness (mm) | ≤0.2 |
| Maintenance method | Full front maintenance |
| Cabinet material | Die-cast aluminum |
| Application Environment |
| Input voltage (V) | 110-240 |
| Operating temperature (℃) | -20~50 |
| Working humidity (RH) | 10%-95% |
| Service life (H) | ≥100000 |
| Model type (using video processor) | AV,S-Video,VGA,DVI,HDMI,SDI,DP |
| Control distance | Category 5 network cable :＜100m,Single mode fiber :＜10km |
weiye color series led strip display screen advantage:
1, Create a high-quality display effect with ultra-high dynamic contrast, make the picture have a strong black and white contrast, and ensure the transparency and brightness of the picture.
2, The mold is formed at one time, and the processing accuracy is ±0.1mm, which can realize seamless splicing
3, Create a high-quality display effect with ultra-high dynamic contrast, make the picture have a strong black and white contrast, and ensure the transparency and brightness of the picture.
4, Back wireless design Wireless connection between boxes, exposed wires on the screen, and internal cables using aviation plugs, which are stable and firm to ensure trouble-free power transmission. A quick lock link is used between the box body and the box body, which is convenient, fast and firm to install, and is neat and tidy at the same time.
5, Super protection, bearing collision capacity> 10kg
